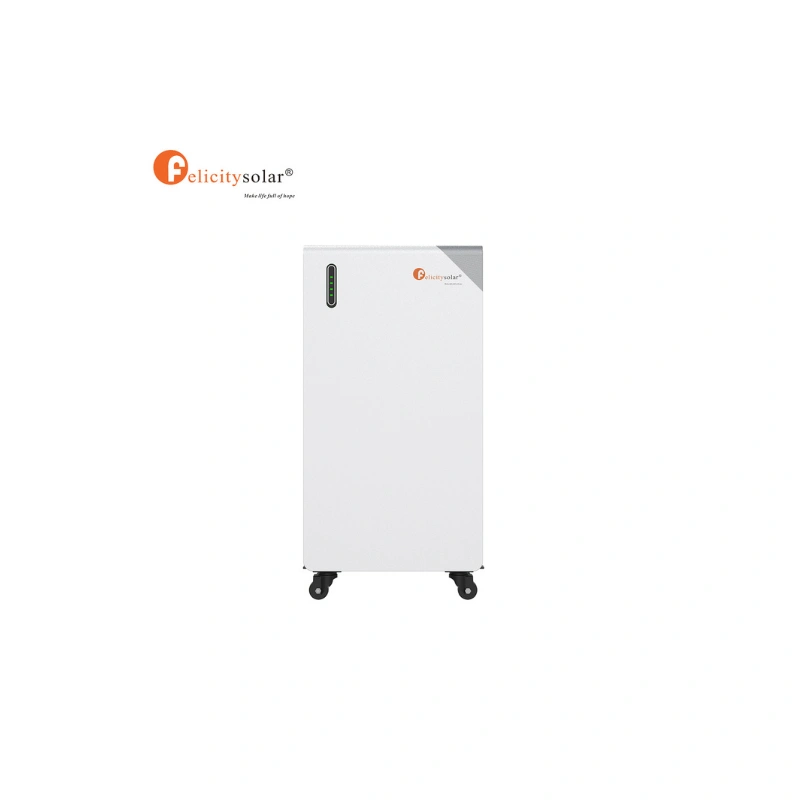

FLA48314-PLUS (IP65)
High Energy Capacity: 16 kWh nominal energy with 314 Ah capacity and 51.2 V voltage. Extended Cycle Life: At least 8,000 charge and discharge cycles under specified test conditions. High Depth of Discharge: ≥95% DoD for efficient utilization of stored energy. Powerful Performance: Maximum continuous charging and discharging current of 160 A, with 300 A peak current for 15 seconds. Expandable Storage: Supports up to 32 batteries in parallel, providing 512 kWh total nominal capacity. Advanced Safety: Intelligent BMS, integrated circuit breaker, replaceable fuse, and aerosol fire suppression system. Smart Monitoring: Built-in Wi-Fi and Bluetooth with RS485 and CAN communication interfaces. Wide Operating Range: Discharge temperature range from -20°C to +55°C. Outdoor Protection: IP65-rated enclosure with floor-mounted installation. Dimensions & Weight: 450 × 895 × 235 mm, weighing approximately 121 kg. Product Warranty: 7 years, subject to manufacturer and regional warranty terms.
Unit Price
Product Overview
High Energy Capacity: 16 kWh nominal energy with 314 Ah capacity and 51.2 V voltage. Extended Cycle Life: At least 8,000 charge and discharge cycles under specified test conditions. High Depth of Discharge: ≥95% DoD for efficient utilization of stored energy. Powerful Performance: Maximum continuous charging and discharging current of 160 A, with 300 A peak current for 15 seconds. Expandable Storage: Supports up to 32 batteries in parallel, providing 512 kWh total nominal capacity. Advanced Safety: Intelligent BMS, integrated circuit breaker, replaceable fuse, and aerosol fire suppression system. Smart Monitoring: Built-in Wi-Fi and Bluetooth with RS485 and CAN communication interfaces. Wide Operating Range: Discharge temperature range from -20°C to +55°C. Outdoor Protection: IP65-rated enclosure with floor-mounted installation. Dimensions & Weight: 450 × 895 × 235 mm, weighing approximately 121 kg. Product Warranty: 7 years, subject to manufacturer and regional warranty terms.
