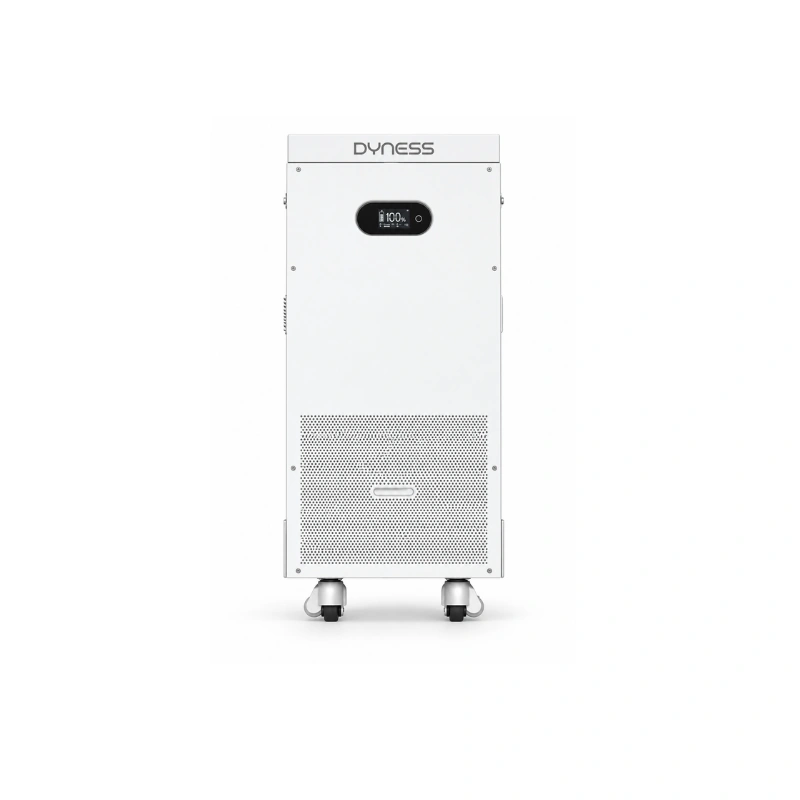

SC314Ah PowerBrick
High Energy Capacity: 16.08 kWh nominal energy with 314 Ah capacity and 51.2 V voltage. Extended Cycle Life: At least 8,000 charge and discharge cycles for long-term reliability. High Depth of Discharge: 95% DoD, providing approximately 15.27 kWh usable energy. Powerful Performance: Maximum continuous charging and discharging current of 200 A, with 300 A peak discharge for 2 minutes. Expandable Storage: Supports up to 50 batteries in parallel, providing approximately 803.8 kWh total nominal capacity. Advanced Safety: LiFePO₄ technology with an integrated aerosol fire suppression system. Smart Monitoring: Built-in Wi-Fi, battery status display, CAN/RS485 communication, and remote firmware updates. Flexible Installation: Supports wall-mounted or floor-mounted installation, with optional wheels for easier movement. Indoor Protection: IP20-rated enclosure with a net weight of approximately 116 kg.
Unit Price
Product Overview
High Energy Capacity: 16.08 kWh nominal energy with 314 Ah capacity and 51.2 V voltage. Extended Cycle Life: At least 8,000 charge and discharge cycles for long-term reliability. High Depth of Discharge: 95% DoD, providing approximately 15.27 kWh usable energy. Powerful Performance: Maximum continuous charging and discharging current of 200 A, with 300 A peak discharge for 2 minutes. Expandable Storage: Supports up to 50 batteries in parallel, providing approximately 803.8 kWh total nominal capacity. Advanced Safety: LiFePO₄ technology with an integrated aerosol fire suppression system. Smart Monitoring: Built-in Wi-Fi, battery status display, CAN/RS485 communication, and remote firmware updates. Flexible Installation: Supports wall-mounted or floor-mounted installation, with optional wheels for easier movement. Indoor Protection: IP20-rated enclosure with a net weight of approximately 116 kg.
