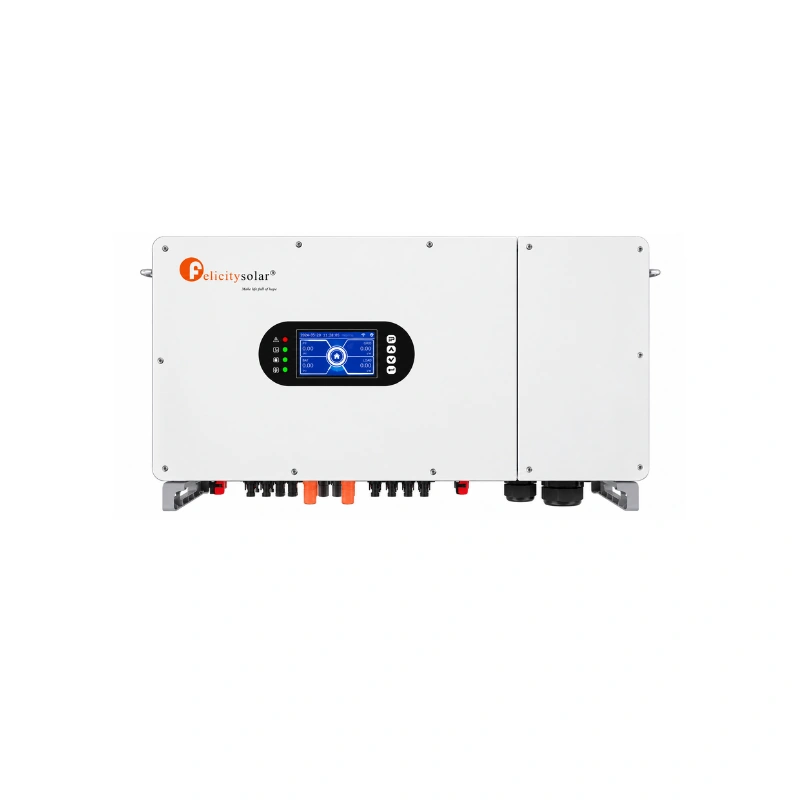

IVGM125KHP3G1
High Three-Phase Output: 125 kW rated AC power with maximum apparent power of 137 kVA. Large Solar Capacity: Supports up to 250 kW PV input power with a maximum DC voltage of 1,000 V. Advanced MPPT Technology: Ten independent MPPT trackers with two solar strings per tracker. High-Voltage Battery Support: Compatible with 160–950 V LiFePO₄ battery systems. Dual Battery Inputs: Two independent battery connections supporting up to 120 A + 120 A charging and discharging current. High Conversion Efficiency: Maximum inverter efficiency of 97.6%. Instant Backup Switching: 0 ms transfer time with surge output up to 1.5 times rated power for 10 seconds. Expandable System: Supports parallel operation of up to 12 inverters. Smart Monitoring: LCD display, RS485/CAN communication, and optional Wi-Fi, Bluetooth, 4G, or LAN monitoring. Advanced Protection: IP66-rated enclosure with intelligent cooling and multiple electrical safety protections. Wide Operating Temperature: Designed for operation from -40°C to +60°C, with power derating above 45°C.
Unit Price
Product Overview
High Three-Phase Output: 125 kW rated AC power with maximum apparent power of 137 kVA. Large Solar Capacity: Supports up to 250 kW PV input power with a maximum DC voltage of 1,000 V. Advanced MPPT Technology: Ten independent MPPT trackers with two solar strings per tracker. High-Voltage Battery Support: Compatible with 160–950 V LiFePO₄ battery systems. Dual Battery Inputs: Two independent battery connections supporting up to 120 A + 120 A charging and discharging current. High Conversion Efficiency: Maximum inverter efficiency of 97.6%. Instant Backup Switching: 0 ms transfer time with surge output up to 1.5 times rated power for 10 seconds. Expandable System: Supports parallel operation of up to 12 inverters. Smart Monitoring: LCD display, RS485/CAN communication, and optional Wi-Fi, Bluetooth, 4G, or LAN monitoring. Advanced Protection: IP66-rated enclosure with intelligent cooling and multiple electrical safety protections. Wide Operating Temperature: Designed for operation from -40°C to +60°C, with power derating above 45°C.
