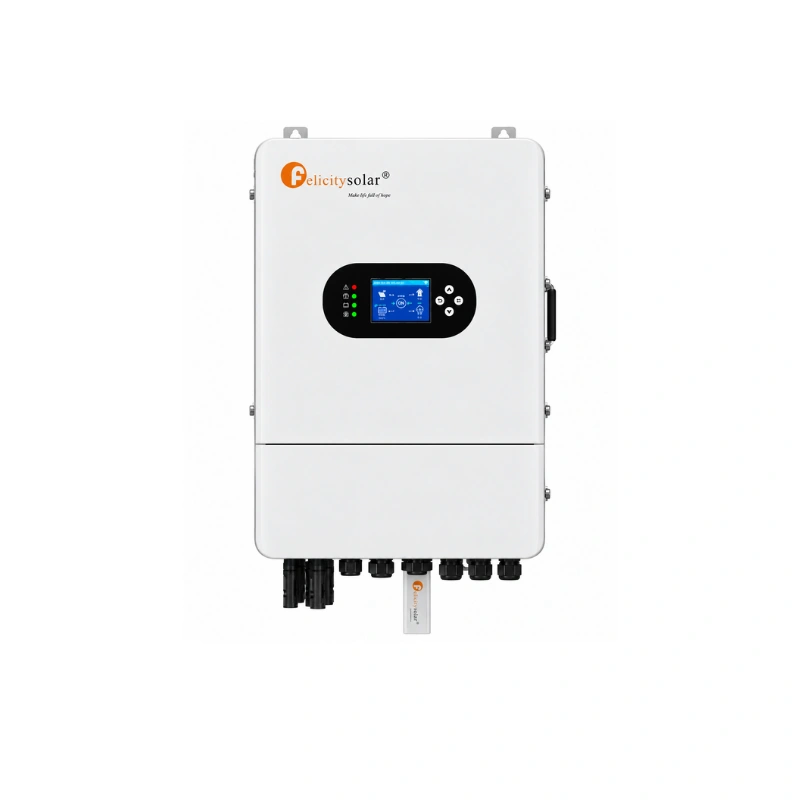

IVGM20KLP3G1(IP65 Hybrid)
Three-Phase Output: 20 kW rated AC power with a maximum apparent output of 22 kVA. High Solar Input: Supports up to 32 kW PV input power with a maximum DC voltage of 800 V. Dual MPPT Technology: Two independent MPPT trackers operating within a 160–650 V voltage range. Battery Compatibility: Supports 40–60 V lithium-ion and lead-acid batteries through two battery inputs. Powerful Battery Charging: Maximum charging and discharging current of 350 A. High Conversion Efficiency: Maximum efficiency of 97.6%. Reliable Backup Power: Delivers twice the rated power for 10 seconds in off-grid mode, with a 20 ms transfer time. AC Passthrough: Supports up to 70 A continuous grid-to-load passthrough. Expandable System: Allows parallel operation of up to 10 inverters. Smart Monitoring: LCD touchscreen, RS485/CAN communication, and Wi-Fi/4G monitoring. Advanced Protection: IP65-rated enclosure with intelligent cooling and multiple electrical safety features.
Unit Price
Product Overview
Three-Phase Output: 20 kW rated AC power with a maximum apparent output of 22 kVA. High Solar Input: Supports up to 32 kW PV input power with a maximum DC voltage of 800 V. Dual MPPT Technology: Two independent MPPT trackers operating within a 160–650 V voltage range. Battery Compatibility: Supports 40–60 V lithium-ion and lead-acid batteries through two battery inputs. Powerful Battery Charging: Maximum charging and discharging current of 350 A. High Conversion Efficiency: Maximum efficiency of 97.6%. Reliable Backup Power: Delivers twice the rated power for 10 seconds in off-grid mode, with a 20 ms transfer time. AC Passthrough: Supports up to 70 A continuous grid-to-load passthrough. Expandable System: Allows parallel operation of up to 10 inverters. Smart Monitoring: LCD touchscreen, RS485/CAN communication, and Wi-Fi/4G monitoring. Advanced Protection: IP65-rated enclosure with intelligent cooling and multiple electrical safety features.
