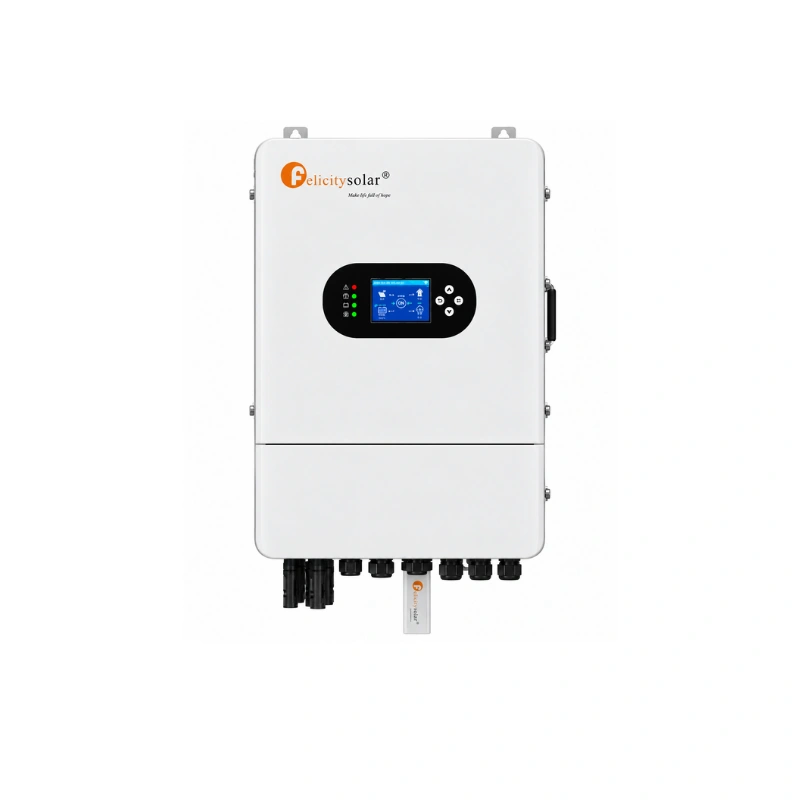

IVGM18KLP3G1(IP65 Hybrid)
Three-Phase Output: 18 kW rated AC power with a maximum apparent power of 19.8 kVA. High Solar Input: Supports up to 28.8 kW PV input with a maximum DC voltage of 800 V. Dual MPPT Technology: Two independent MPPT trackers operating within a 160–650 V voltage range. Battery Compatibility: Supports 40–60 V lithium-ion and compatible lead-acid batteries through two battery inputs. Powerful Battery Charging: Maximum charging and discharging current of 330 A. High Conversion Efficiency: Maximum efficiency of 97.6%. Reliable Backup Power: Delivers twice the rated output power for 10 seconds, with a 20 ms transfer time. Expandable System: Supports parallel operation of up to 10 inverters. Smart Monitoring: LCD touchscreen, RS485/CAN communication, and Wi-Fi/4G monitoring options. Advanced Protection: IP65-rated enclosure with smart cooling and multiple electrical safety protections.
Unit Price
Product Overview
Three-Phase Output: 18 kW rated AC power with a maximum apparent power of 19.8 kVA. High Solar Input: Supports up to 28.8 kW PV input with a maximum DC voltage of 800 V. Dual MPPT Technology: Two independent MPPT trackers operating within a 160–650 V voltage range. Battery Compatibility: Supports 40–60 V lithium-ion and compatible lead-acid batteries through two battery inputs. Powerful Battery Charging: Maximum charging and discharging current of 330 A. High Conversion Efficiency: Maximum efficiency of 97.6%. Reliable Backup Power: Delivers twice the rated output power for 10 seconds, with a 20 ms transfer time. Expandable System: Supports parallel operation of up to 10 inverters. Smart Monitoring: LCD touchscreen, RS485/CAN communication, and Wi-Fi/4G monitoring options. Advanced Protection: IP65-rated enclosure with smart cooling and multiple electrical safety protections.
