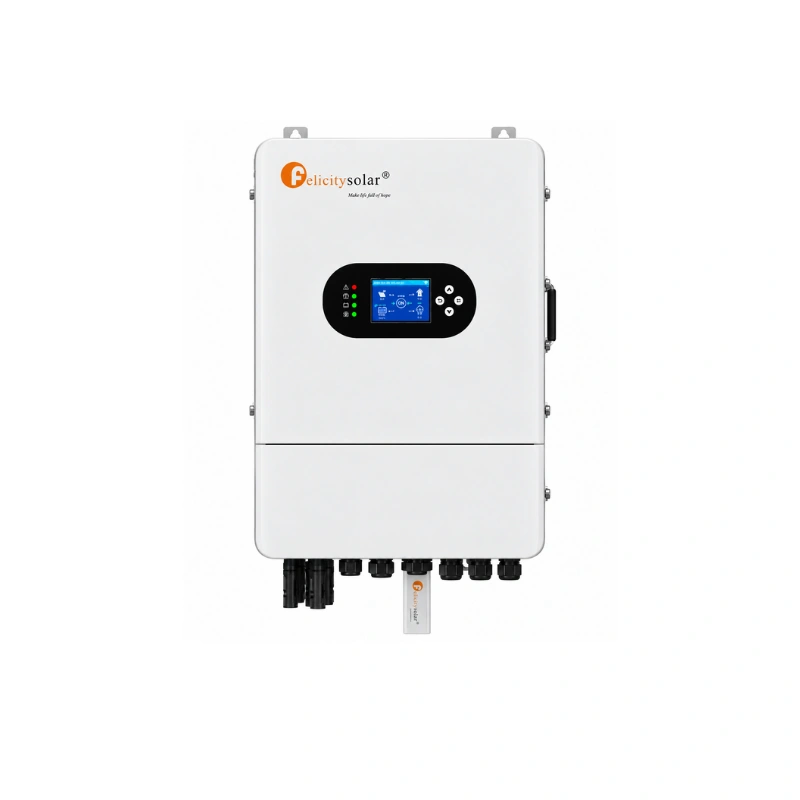

IVGM16KLP3G1(IP65 Hybrid)
Three-Phase Output: 16 kW rated AC power with a maximum apparent power of 17.6 kVA. High Solar Input: Supports up to 25.6 kW PV input power, with a maximum DC voltage of 800 V. Dual MPPT Technology: Two independent MPPT trackers operating within a 160–650 V voltage range. Battery Compatibility: Supports 40–60 V low-voltage lithium and compatible lead-acid battery systems. Powerful Battery Charging: Maximum charging and discharging current of 300 A. AC Passthrough: Supports up to 70 A continuous AC passthrough. Expandable System: Allows parallel operation of up to 10 inverters for increased output capacity. Smart Communication: RS485 and CAN interfaces for battery management, with Wi-Fi/4G monitoring options. Advanced Protection: IP65-rated enclosure for protection against dust and water. Backup Power: Supports battery backup during grid outages when configured with compatible batteries.
Unit Price
Product Overview
Three-Phase Output: 16 kW rated AC power with a maximum apparent power of 17.6 kVA. High Solar Input: Supports up to 25.6 kW PV input power, with a maximum DC voltage of 800 V. Dual MPPT Technology: Two independent MPPT trackers operating within a 160–650 V voltage range. Battery Compatibility: Supports 40–60 V low-voltage lithium and compatible lead-acid battery systems. Powerful Battery Charging: Maximum charging and discharging current of 300 A. AC Passthrough: Supports up to 70 A continuous AC passthrough. Expandable System: Allows parallel operation of up to 10 inverters for increased output capacity. Smart Communication: RS485 and CAN interfaces for battery management, with Wi-Fi/4G monitoring options. Advanced Protection: IP65-rated enclosure for protection against dust and water. Backup Power: Supports battery backup during grid outages when configured with compatible batteries.
