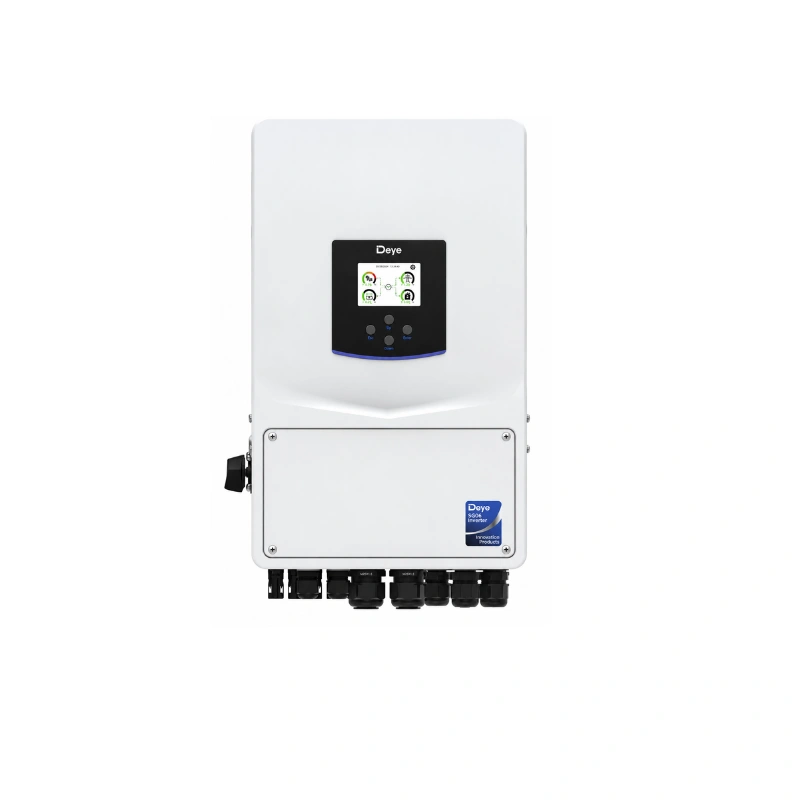

SUN-12K-SG06LP1-EU-CM3
High Power Output: 12 kW rated AC power with a maximum apparent output of 13.2 kVA. Large Solar Capacity: Supports up to 24 kW connected PV capacity, with 19.2 kW maximum PV input power. Triple MPPT Technology: Three independent MPPT trackers with a 150–425 V operating range for optimized solar energy production. Powerful Battery Charging: Compatible with 40–60 V lithium-ion and lead-acid batteries, supporting up to 250 A charging and discharging current. Strong Backup Performance: Delivers up to twice the rated output power for 10 seconds during off-grid operation. Smart Energy Management: Supports programmable time-of-use scheduling, AC coupling, and diesel generator integration. Expandable System: Allows parallel operation of up to 16 inverters for increased power capacity. High Efficiency & Protection: Up to 97.6% conversion efficiency, IP65 protection, and Wi-Fi, RS485, and CAN communication interfaces.
Unit Price
Product Overview
High Power Output: 12 kW rated AC power with a maximum apparent output of 13.2 kVA. Large Solar Capacity: Supports up to 24 kW connected PV capacity, with 19.2 kW maximum PV input power. Triple MPPT Technology: Three independent MPPT trackers with a 150–425 V operating range for optimized solar energy production. Powerful Battery Charging: Compatible with 40–60 V lithium-ion and lead-acid batteries, supporting up to 250 A charging and discharging current. Strong Backup Performance: Delivers up to twice the rated output power for 10 seconds during off-grid operation. Smart Energy Management: Supports programmable time-of-use scheduling, AC coupling, and diesel generator integration. Expandable System: Allows parallel operation of up to 16 inverters for increased power capacity. High Efficiency & Protection: Up to 97.6% conversion efficiency, IP65 protection, and Wi-Fi, RS485, and CAN communication interfaces.
