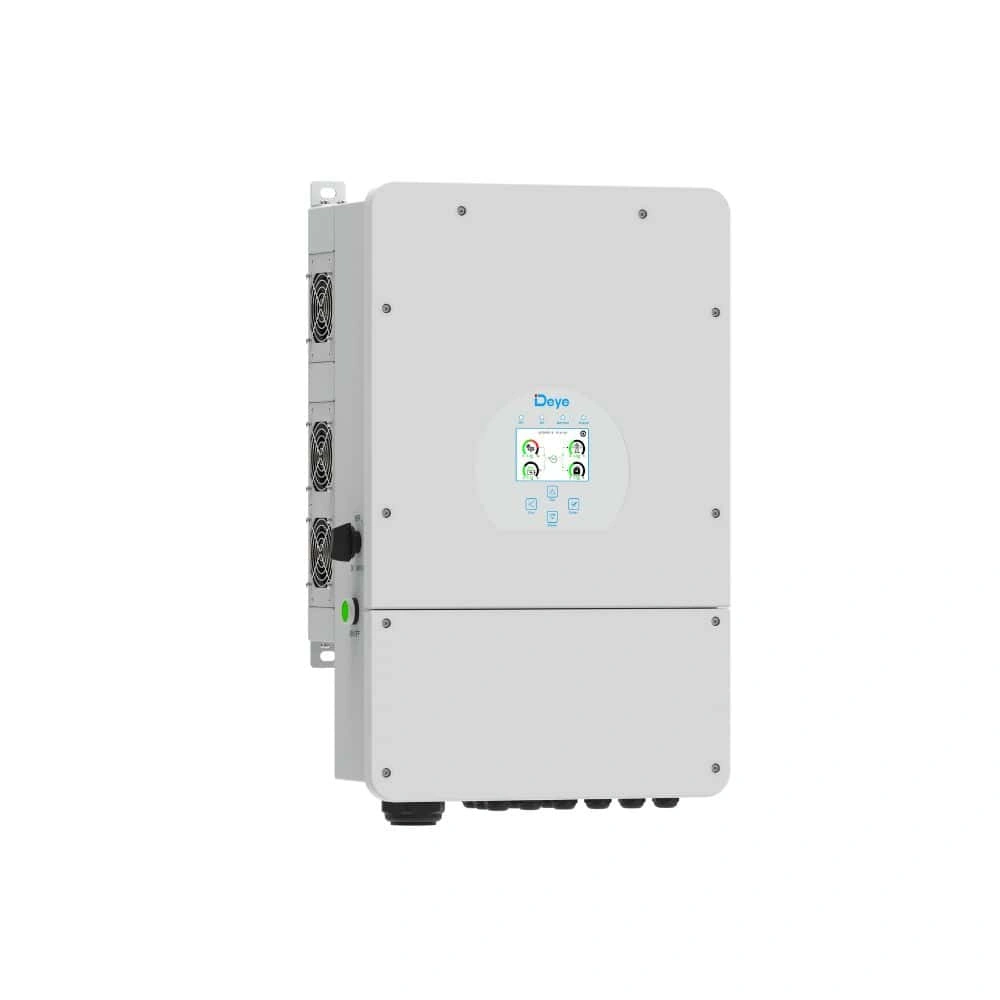

Deye LV 12kW Single Phase Hybrid Inverter
Solar & Inverter Performance Rated output power: 12 kW 3 MPPT channels for superior PV design flexibility Maximum DC input power: 24,000 W Maximum PV input voltage: 500 V MPPT voltage range: 150 – 425 V Start-up voltage: 125 V Battery Integration Battery voltage range: 40 – 60 V Compatible with lithium-ion and lead-acid batteries Maximum charging / discharging current: 250 A Single battery input Efficiency & Reliability Maximum efficiency: 97.6% Euro efficiency: 97.0% MPPT efficiency: 99.9% Operating temperature range: -40°C to +60°C (derating above 45°C) Ingress protection rating: IP65 Design & Installation Cooling system: Intelligent air cooling Dimensions (W × H × D): 464 × 763 × 282 mm Weight: ~52 kg Suitable for indoor and outdoor installation
Product Overview
Solar & Inverter Performance Rated output power: 12 kW 3 MPPT channels for superior PV design flexibility Maximum DC input power: 24,000 W Maximum PV input voltage: 500 V MPPT voltage range: 150 – 425 V Start-up voltage: 125 V Battery Integration Battery voltage range: 40 – 60 V Compatible with lithium-ion and lead-acid batteries Maximum charging / discharging current: 250 A Single battery input Efficiency & Reliability Maximum efficiency: 97.6% Euro efficiency: 97.0% MPPT efficiency: 99.9% Operating temperature range: -40°C to +60°C (derating above 45°C) Ingress protection rating: IP65 Design & Installation Cooling system: Intelligent air cooling Dimensions (W × H × D): 464 × 763 × 282 mm Weight: ~52 kg Suitable for indoor and outdoor installation
